8-Ch Ethernet Relay Module with PoE Port Communication Modbus RTU/Modbus TCP Protocol Cover with Industrial Grade Rail-Mount Case
4.1 (50 items)
Limited Time SaleUS$27.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211221704 | Release Date | 2026/04/04 | List Price | US$18.00 | Model Number | 211221704 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

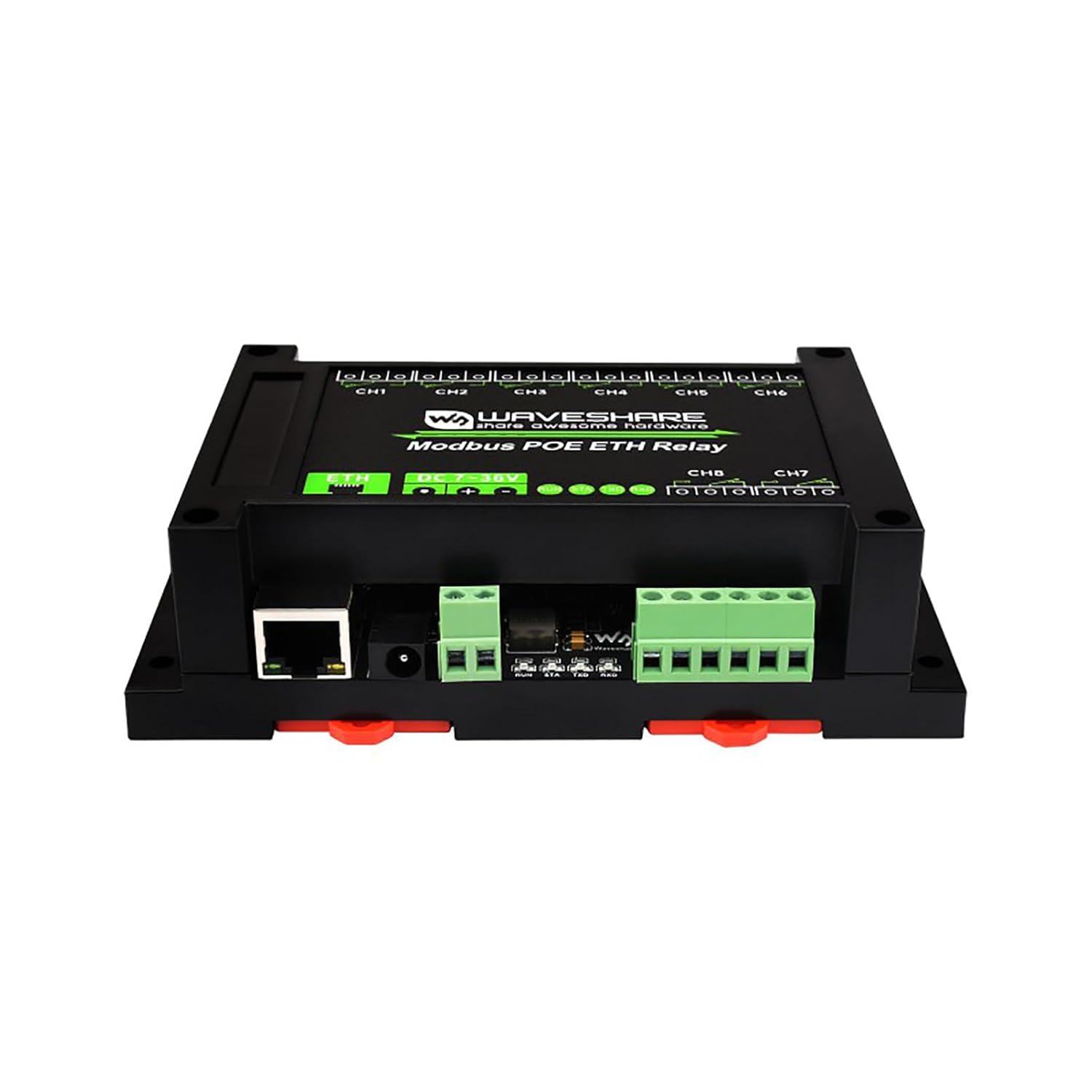

Features This product is an industrial 8-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case. The Modbus POE ETH Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements. Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically Supports DC 7~36V wide range power input and PoE power supply Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection High-quality relay, contact rating: ≤10A 250VAC/30VDC Rail-mounted ABS case, easy to install, safe to use 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status Package include This product supports PoE for power supply and the external power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it. 1. Modbus POE ETH Relay x1
- 8 channel ETH relay, features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
- 8-ch ETH POE relay, supports DC 7~36V wide range power input and PoE power supply
- 8-ch POE relay module, supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
- 8 channel POE relay, high-quality relay, contact rating: ≤10A 250VAC/30VDC; rail-mounted ABS case, easy to install, safe to use
- Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit; Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
| UPC | 749877649638 |
|---|---|
| Wattage | 1000 watts |
| Brand Name | Coolwell |
| Coil Voltage | 36 Volts |
| Contact Type | Normally Open |
| Manufacturer | Coolwell |
| Mounting Type | rail mount |
| Connector Type | Rj45 Jack |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Maximum Switching Current | 10 Amps |
