PWM Signal Generator Module 1-Channel 1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Module LCD Display with red and Black Cable
4.3 (73 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211160326 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211160326 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product DescriptionStyle:Rotary Switch(With swith)This Signal Generator is a device that provides electrical signals at a variety of frequencies, square wave, and output levels. It is used as a signal source or excitation source for testing. Widely used in production practice and technology.Parameter:Size: 3*1.65*1.45in(78*42*37mm)Work Voltage: DC 3.3V-30VFrequency Range(Normal mode): 1Hz~150KHzFrequency Range(Precise mode): 1Hz~15KHzFrequency Accuracy: 2%Duty Cycle Accuracy: 1% at Normal modeDuty Cycle Accuracy: 0.1% at Precise modeDuty Cycle Range: 0. 00%-100%Output Current: About 5-30mAOutput Amplitude: Same to input voltageWork Temperature: -104℉~185℉(-40℃~85℃)Work Humidity: 0%~95%RHUsing Step:1. Connect to power supply2. Press rotary switch for 10second to switch Normal mode and Precise mode3. Short press rotary switch to set frequency and change value by rotating switch4. Press rotary switch for 2second to set duty cycle5. Keep press for 5second to lock set parameters6. Test7. Press button ‘ON/OFF’ to turn on or off PWM output8. Remove power and connect load to use module.This Signal Generator has two work modes: Normal Mode & Precise Mode. For the Operation Methods of Frequency Range Setting & Duty Cycle Range Setting, please check the PDF file at the "Technical Specification" Section on the product page.Package Includes:1 x PWM Signal Generator（With push button switch）1 x red and black cable
- Parameters: Work voltage range is DC 3.3V-30V; the frequency range is 1Hz-150kHz/1Hz-15kHz; the output current is 5-30mA.
- Dual Work Mode: Normal mode & accurate mode.Regular mode with 1% duty cycle steps.Precision mode with 0.1% duty cycle steps.
- Support power-down memory function: no need to set the data after power-off. Knob supports lock function to avoid misoperation.

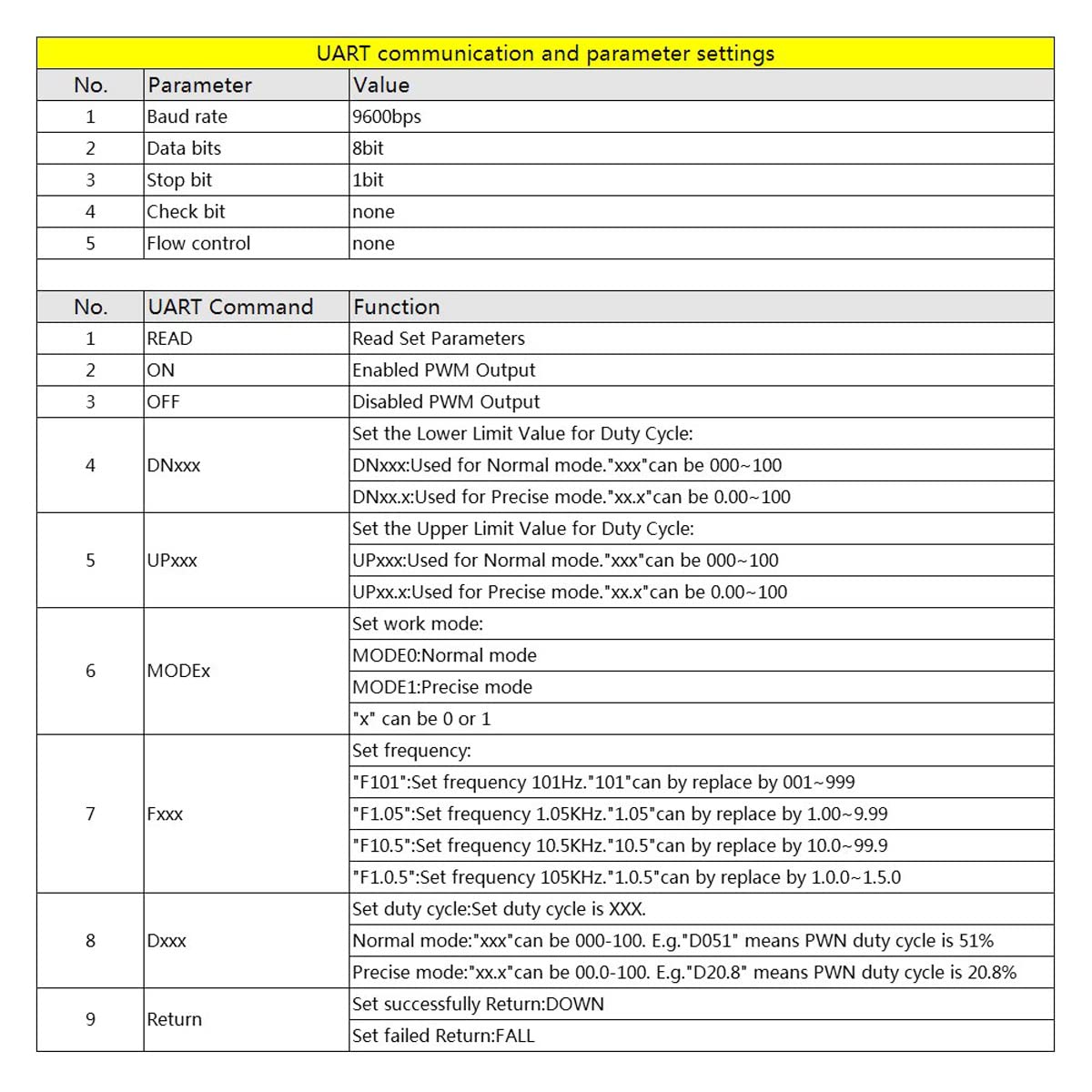

- With lock function: PWM output can set frequency & duty cycle separately; duty cycle upper and lower bounds adjustable; support serial communication; all data auto-saved after setting.

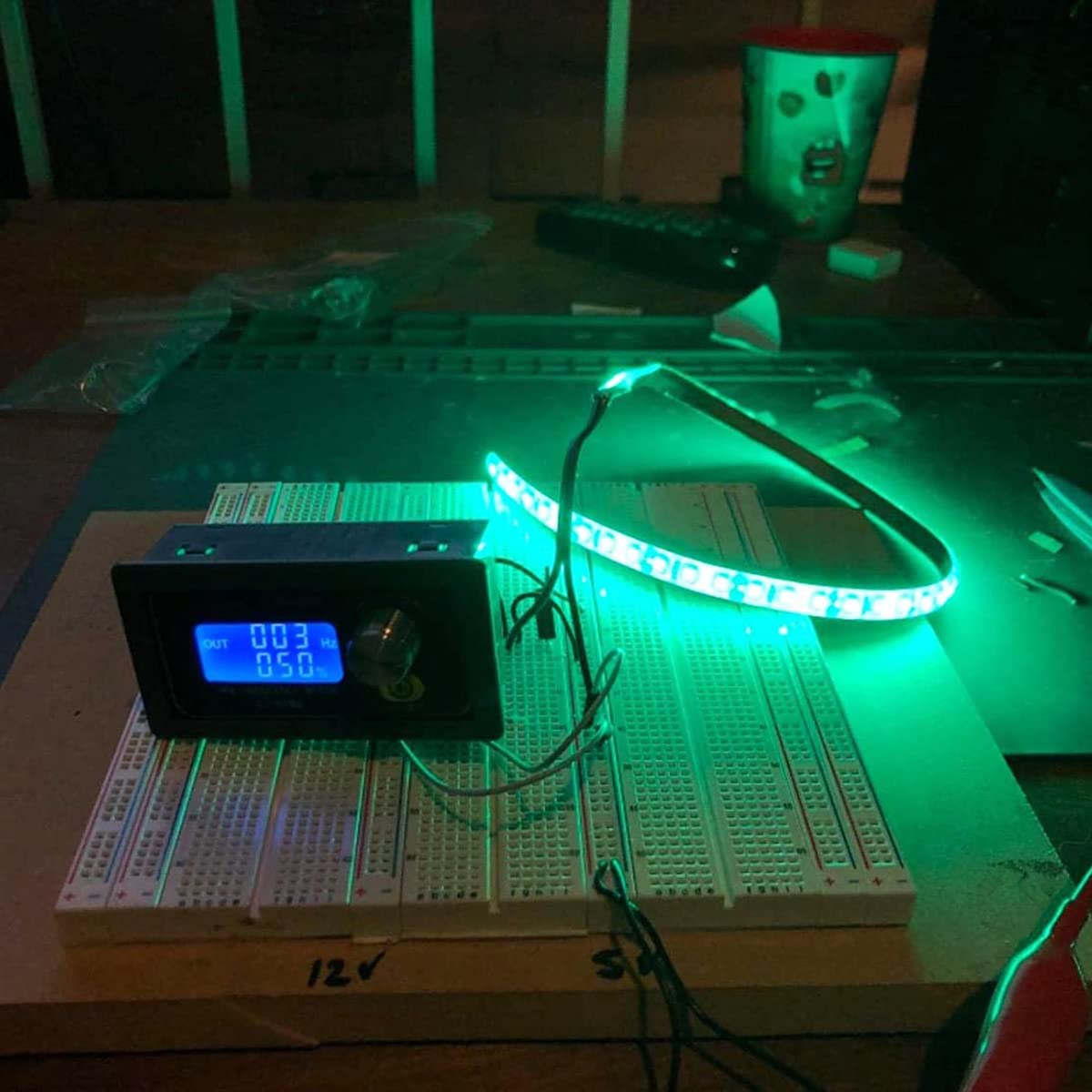

- Wider Application: Square wave signal generator, generating square wave signal for experimental development, generating square wave signal that controls the motor driver, and generating adjustable pulses for MCU Dimmer; Dimmer; Speed governor, and so on.
| Color | With button |
|---|---|
| Model | JK-US-372 |
| Terminal | Screw |
| Brand Name | DKARDU |
| Unit Count | 2.0 Count |
| Switch Type | Dimmer Switch, Push Button, Rotary, Temperature Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | DKARDU |
| Actuator Type | Rotary |
| Material Type | Copper |
| Mounting Type | Standalone |
| Connector Type | Rca |
| Control Method | Touch |
| Current Rating | 30 Milliamps |
| Operation Mode | manual |
| Controller Type | Push Button |
| Number of Items | 2 |
| Contact Material | Copper |
| Operating Voltage | 30 Volts |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
